PICO SPATIAL SDK · 0.10.7Emulator verified

Spatial Video

From a planar player to an SBS immersive sphere

The player owns decoding and time state, while VideoPlayerComponent chooses the target mesh and material, allowing planar, Portal, and 360° modes to share one playback core.

Capability: Planar, Portal, and 360° SBS video
Environment: PICO Emulator 0.10
Result: Playback and controls verified after asset-path fix

RUN EVIDENCE

Emulator capture

Captured from the local PICO Emulator 0.10 run; no mockup is used as test evidence.

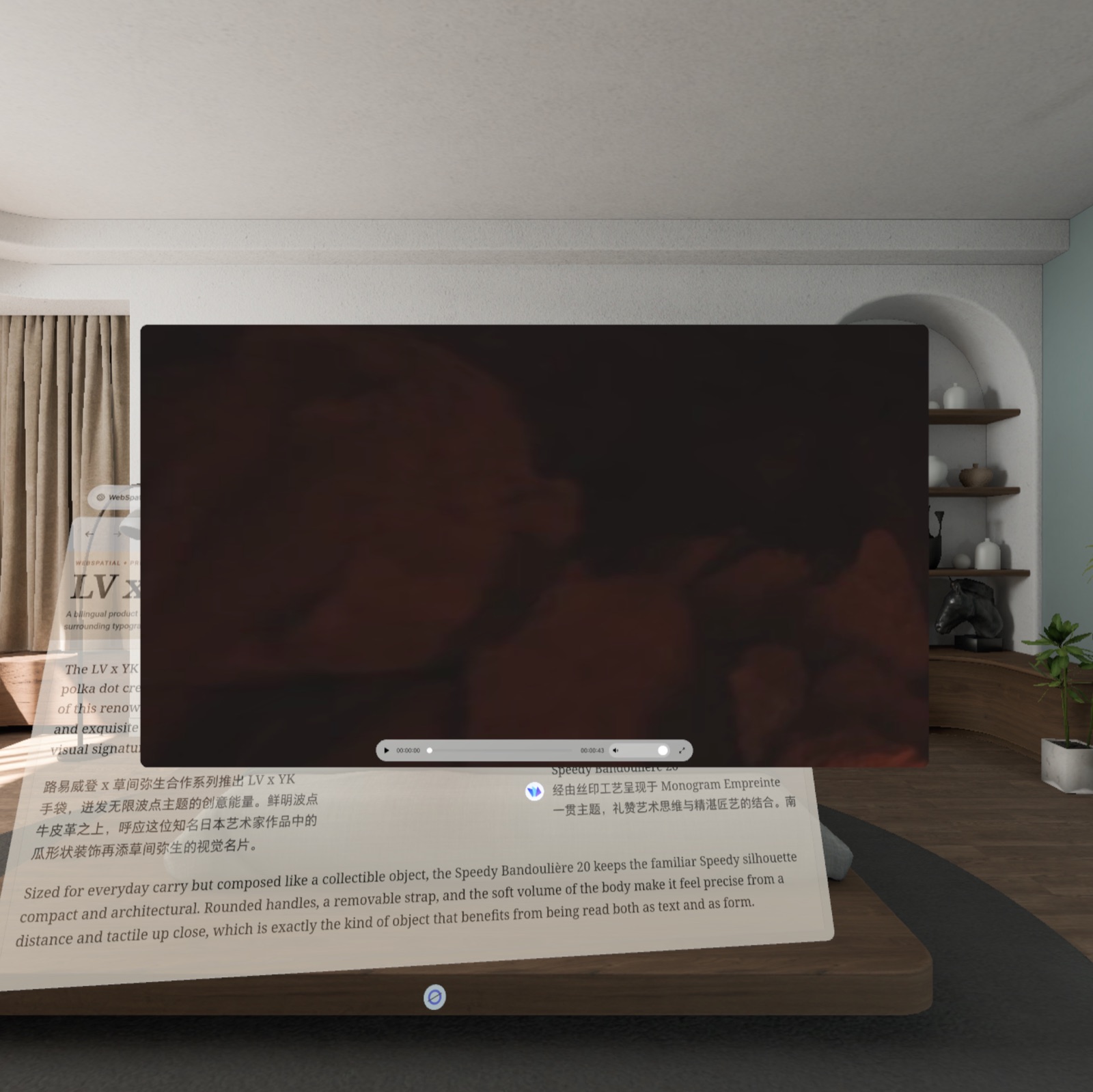

Spatial Video playback toolbar in the PICO emulator — Captured from the local PICO Emulator 0.10 run; no mockup is used as test evidence.

Issue found: mismatched file extension

VideoViewModel pointed to balenciaga.mp4 while the asset was balenciaga.mov, causing FileNotFoundException. Switching to cave_4096x2048_sbs.mp4 restored playback, seeking, volume, and fullscreen controls.

Core code: the player state machine

PlaybackManager registers callbacks, prepares asynchronously, and exposes READY/PLAYING/PAUSED as Compose state. Reset unregisters callbacks, closes the player, then restores initial state.

Core code · kotlinPlaybackManager.kt

context.assets.openFd(videoPath).use {
  player.setDataSource(it)
}
player.prepareAsync()

override fun onPrepared() {
  state = PlaybackState.READY
  duration = player.getDuration().coerceAtLeast(1L)
}

Validate asset paths during build or tests instead of deferring failures to runtime.

Core code: one stream, two geometries

Planar mode creates a rounded video panel. Immersive mode uses a sphere, SBS dimension mode, and front culling for inside viewing. Portal adds shader-graph parameters to VideoMaterial.

Core code · kotlinVideoEntityAssembler.kt

val material = VideoMaterial(
  BlendingMode.OPAQUE,
  VideoDimensionMode.SIDE_BY_SIDE,
  MaterialCullingMode.FRONT,
  Color4.BLACK
)
entity.components.set(VideoPlayerComponent(player, sphereMesh, material))

The decoder does not need to know whether the destination is a panel, portal, or sphere.
